Residential roof trusses are prefabricated triangular roof frameworks made of wood or steel designed to support the roof while connecting the outer walls of a house. Compared to conventional roofs, roof trusses offer cost efficiency by using up to 40% less wood and allowing for quick and tidy installation.
Roof trusses are also flexible, easily adjustable to various slopes, spans, and roof configurations you desire. This structure distributes loads steadily to the walls or supports of the building, enabling spacious interior spaces without the need for columns or load-bearing walls.
With a prefabrication system, these trusses are ready to be installed on-site and can span up to 24 meters, providing you with the ease to create modern open-space designs.
This article will discuss the various types of residential roof trusses, the advantages of light gauge steel (LGS), and why steel is the right choice for your residential roof construction.

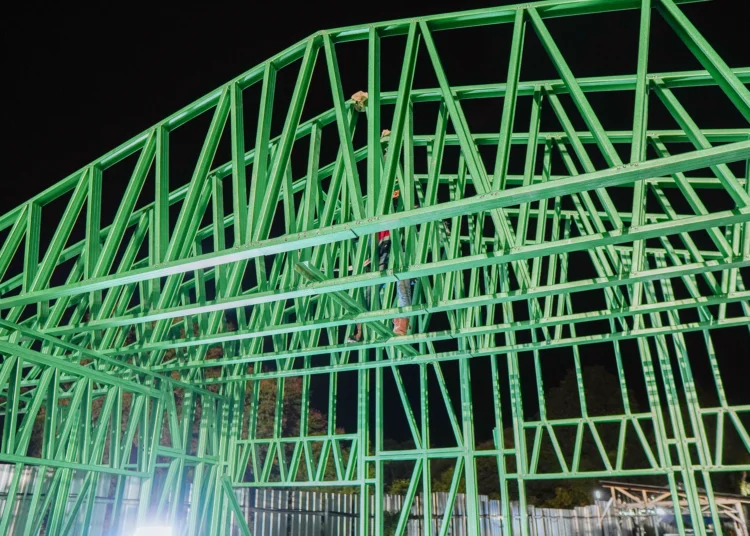

The Types of Residential Roof Trusses
Residential roof trusses, or roof frameworks for houses, come in various designs tailored to construction needs, aesthetics, and structural strength. Some common types include:
1. Flat Roof Truss
Flat roof trusses allow for flat or low-sloped roof designs. This roof framework is rarely used in residential construction. This roof structure requires careful design to ensure that the weight is well distributed and to avoid water pooling, which can lead to structural damage. This type of truss is suitable for those wanting maximum interior space with a low roof design or buildings with height restrictions.
- Advantages: Easy maintenance, uses less material.
- Disadvantages: Complex design, potential for water pooling.
- Recommended for: Buildings that require spacious interiors or designs that meet height requirements.
2. King Post Trusses
King post trusses feature a simple design with a single vertical center beam or “king post” that supports the roof peak. This type of truss is affordable and ideal for short spans but cannot support large areas.
- Advantages: Easy to construct, cost-effective.
- Disadvantages: Limited to small houses, limited headroom.
- Recommended for: Small to medium homes with a limited budget.
3. Queen Post Trusses
This design is similar to the king post but has two additional vertical beams to support the roof. Queen post trusses are stronger and can support longer spans than king post trusses, making them a good choice for medium-sized buildings.
- Advantages: Better stability, average price.
- Disadvantages: Limited to certain spans, slightly more expensive than king post.
- Recommended for: Those who need a simple design but with longer spans.
4. Howe Trusses
Howe trusses combine elements from both king and queen post designs with additional diagonal beams that provide extra strength, making them ideal for projects requiring long spans. This is an efficient choice for projects needing trusses with extra strength and stability.
- Advantages: Supports long spans, flexible design.
- Disadvantages: Uses more material, limited headroom.
- Recommended for: Symmetrical pitched roof structures in buildings with long spans.
5. Scissor Roof Trusses
Scissor trusses feature two lower beams that cross in the center, creating a sloping shape that provides more space inside the roof, making them suitable for cathedral ceilings. These trusses are typically used for large homes and offer higher headroom.
- Advantages: Provides sloped ceilings, supports long spans.
- Disadvantages: Relatively expensive, difficult to insulate.
- Recommended for: Those desiring a sloped ceiling design.
6. Fink Trusses
Fink trusses use numerous diagonal supports for even load distribution, making them suitable for buildings with wide spans and often chosen for modern residential construction.
- Advantages: Supports wide spans, cost-effective.
- Disadvantages: Uses a lot of material, reduces storage space.
- Recommended for: Large homes or commercial buildings.
7. Attic Roof Trusses
Designed to provide livable space in the attic, attic trusses create additional space that can be used as a bedroom or large storage area. However, they require additional materials to support the roof’s weight.
- Advantages: Creates spacious attics, supports storage.
- Disadvantages: High material costs, difficult to insulate.
- Recommended for: Those looking to maximize attic space for living.
8. Mono Roof Trusses
Mono trusses are designed for roofs with a single slope, typically for lower building designs or to add a unique visual element to a building with a single pitch.
- Advantages: Visually appealing design, suitable for long spans.
- Disadvantages: Only has one slope, potential for leaks.
- Recommended for: Roof designs with a single slope that is not flat.
9. Hip Roof Trusses
Hip trusses are an ideal choice for buildings with pyramid-shaped roofs consisting of four slopes. This design is very sturdy and suitable for windy areas but requires more material.
- Advantages: Strong in high winds, supports long spans.
- Disadvantages: Complex design, high costs.
- Recommended for: Large buildings requiring unique, wind-resistant roof structures.
10. Gable Roof End Truss
Gable trusses serve as supports at the ends of symmetrical roofs. These trusses are often used with other truss types to ensure that loads are well distributed to the building’s walls.
- Advantages: Supportive design, varies in span.
- Disadvantages: Uses a lot of material, limited application.
- Recommended for: Supporting loads on traditional symmetrical roofs.
11. Cathedral Truss
Cathedral trusses allow for cathedral ceiling designs on one side of the building, giving a charming interior appearance. This is one of the most expensive and complex trusses but offers more headroom inside.
- Advantages: Aesthetic design, adds headroom.
- Disadvantages: High cost, complex design.
- Recommended for: Homes wishing to add cathedral ceilings to part of the interior without altering the exterior appearance.
12. Fan Truss
Fan trusses utilize three main supports that allow for the installation of heavy roofing materials, such as clay tiles or shingles. These trusses are suitable for areas with high snow loads.
- Advantages: Inexpensive, supports heavy loads.
- Disadvantages: Limited span, minimal attic space.
- Recommended for: Homes in snowy areas or those needing heavy roofing materials.
13. Raised Tie Truss
Raised tie trusses provide additional headroom by placing the bottom beam higher, resulting in a more open interior design with large overhangs.
- Advantages: Greater headroom, creates large eaves.
- Disadvantages: Limited attic space, short span.
- Recommended for: Those desiring high ceilings without expanding the attic space.
The Best Option for Mining Camp and Site Office
The Advantages of Residential Roof Trusses Made from Steel
The use of steel materials, particularly light gauge steel, for residential roof trusses is becoming increasingly popular for several reasons:
1. Termite and Weather Resistant
Steel will not be eaten by termites like wood, making it more durable and requiring less maintenance. Steel is also resistant to weather changes; it does not shrink or warp when exposed to heat or cold. With exceptional durability, steel trusses can last 50-70 years with infrequent maintenance, while wood trusses typically last around 30 years.
2. Lighter Yet Strong
Light gauge steel has a lighter weight compared to conventional steel but still possesses high structural strength. This facilitates the installation process and reduces the load on the building’s foundation. With a high strength-to-weight ratio, steel can withstand heavy snow and wind loads, making it a better choice for extreme climates.
3. Better Fire Safety
Light gauge steel has a high melting point, making it safer in resisting heat or fire compared to wood materials. Steel can also be coated with fire-resistant materials, making it almost impervious to fire. This makes it a safer choice for homes in fire-prone areas.
4. Pest Resistant
Steel is immune to pests such as termites, carpenter ants, and wood bees. This not only reduces the risk of structural damage but also decreases maintenance costs associated with pest control.
5. Uniformity and Quality
Steel trusses are manufactured using prefabrication methods in factories with strict quality control, resulting in uniform sizes and shapes. This ensures consistency and minimizes the likelihood of installation errors.
6. Environmentally Friendly
Steel is a recyclable material and can provide additional points for green building certification programs. By using steel, homeowners can contribute to environmental sustainability.
7. Quick and Cost-Effective Installation
With its prefabricated form, light gauge steel can be installed more quickly and efficiently. Its lightweight nature also makes transportation and installation easier and faster compared to wooden trusses. This saves time and overall construction costs, as additional processing is not required.
The Best Option for Mining Camp and Site Office

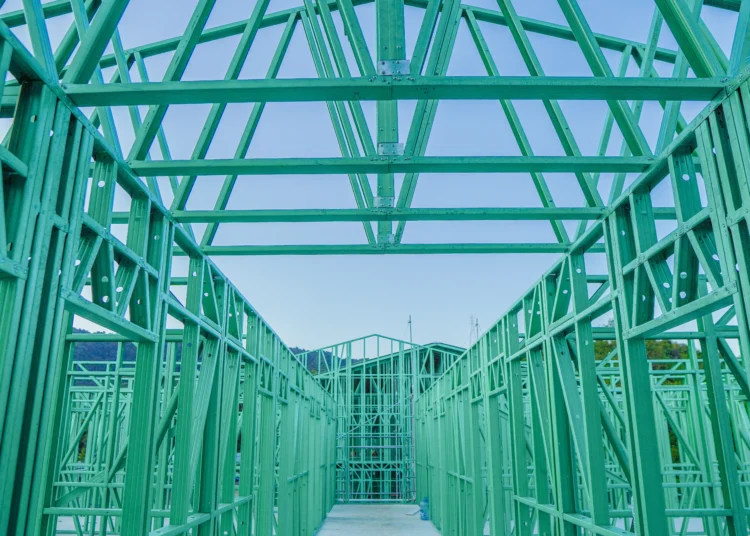

Tradecorp Uses LGS for Construction and Roof Trusses: What Are the Advantages?
Tradecorp offers light gauge steel (LGS) framing for building construction, including workshops and other industrial facilities. Here are some advantages of using LGS for roof trusses:
1. Consistent Quality
Steel construction components are manufactured in a factory with strict controls to ensure precision and reliable performance. Unlike wood, which can have defects or imperfections due to the varying quality of each tree, steel offers consistent and uniform quality. This helps prevent issues that may arise during the construction process.
2. Design Flexibility
Steel framing can accommodate custom structural designs, including long spans, open floor plans, and unique architecture. Creating curves, angles, and irregular shapes is easier with steel than with other materials. This flexibility also allows for integration with other structural systems to achieve complex and innovative designs.
3. Faster Construction
Choosing prefabricated steel framing can significantly reduce project completion times. Prefabricated steel delivered to the project site allows for quick assembly, saving time and labor costs. Steel frame components are often shipped in pre-marked forms to simplify the assembly process, enhancing overall project efficiency.
4. Fire Resistance
Steel framing offers superior fire resistance compared to wood. This makes steel a safer choice and can lower insurance costs. Although steel may deform under high heat, it will not burn, providing additional protection for the structure and the safety of its occupants.
5. Strength
Proportionally, steel is stronger than wood or concrete. Steel has high load-bearing capacity and resistance to shock or impact, making it ideal for structures that must withstand heavy loads and extreme conditions. This ensures that buildings will endure over time in various conditions.
6. Sustainability
Steel is 100% recyclable, making it an excellent choice for sustainable projects. Using recycled steel can conserve natural resources and reduce landfill space while positively contributing to the environment.
7. Resistance to Termites and Pests
Steel framing eliminates concerns about damage from termites or rotting due to moisture. This enhances the lifespan of the building and reduces maintenance costs. This advantage makes steel a better choice for buildings in pest-prone areas.
8. Workplace Safety
Using steel in construction also enhances workplace safety. Steel can be prefabricated and assembled using more controlled methods, thereby reducing the risk of accidents at the project site. This creates a safer working environment for all workers.
9. Durability and Stability
Steel has exceptional durability and can withstand various climate conditions as long as it remains dry and protected from moisture. Although steel does not absorb water, it is important to ensure protection against moisture to prevent rust on galvanized steel.
10. Thermal and Acoustic Insulation
While steel is highly conductive to heat and sound, there are solutions to address these issues. Installing thermal barriers can reduce heat loss. Additionally, acoustic insulation systems can be installed to separate layers from the frame to prevent sound transmission through the steel, creating a comfortable environment.
11. Ease of Assembly
Light gauge steel is also easy to handle and suitable for use in many project areas. The prefabricated design makes the construction process more efficient, reducing the likelihood of errors. This allows projects to be completed more quickly and effectively.
