IndonesiaA Cargo Carrying Unit (CCU) container differs from a standard shipping container in that it is specifically designed for offshore operations. While shipping containers are ISO certified, CCU containers must be both ISO and DNV certified to ensure their suitability for the demanding offshore environment.
The oil and gas industry relies on CCU containers for their strength and durability to withstand impacts during transfers from ships to offshore platforms. Offshore operations are exposed to high-risk conditions such as extreme weather, rough seas and limited space, which increase the likelihood of accidents and incidents. CCU containers play an essential role in minimizing these risks.
When used in offshore operations, CCU containers offer many advantages, including safety, time efficiency and cost savings. These DNV-certified offshore containers ensure safe cargo transport in extreme weather and corrosive environments thanks to reinforced structures, special lifting points and reliable locking systems. They also significantly reduce storage and transportation costs by enabling faster and more efficient cargo handling.
If you need ISO and DNV certified CCU containers, Tradecorp offers a wide range to meet your needs. Available types include mini, general purpose, basket, half height, toolbox, lifting frame, open side, drum basket, cutting skip, special frame, waste skip, tank, test cabin, high cube, accommodation, bottle rack, mud cutting box, open top and refrigerated units.
For full details, explore the full range of CCU Containers in the following sections.
Types of CCU Containers for Offshore Applications
Of course, CCU containers are available in different types to meet different field requirements. Each type complies with DNV 2.7-1 and ISO 10855 standards. See the information below for more details.

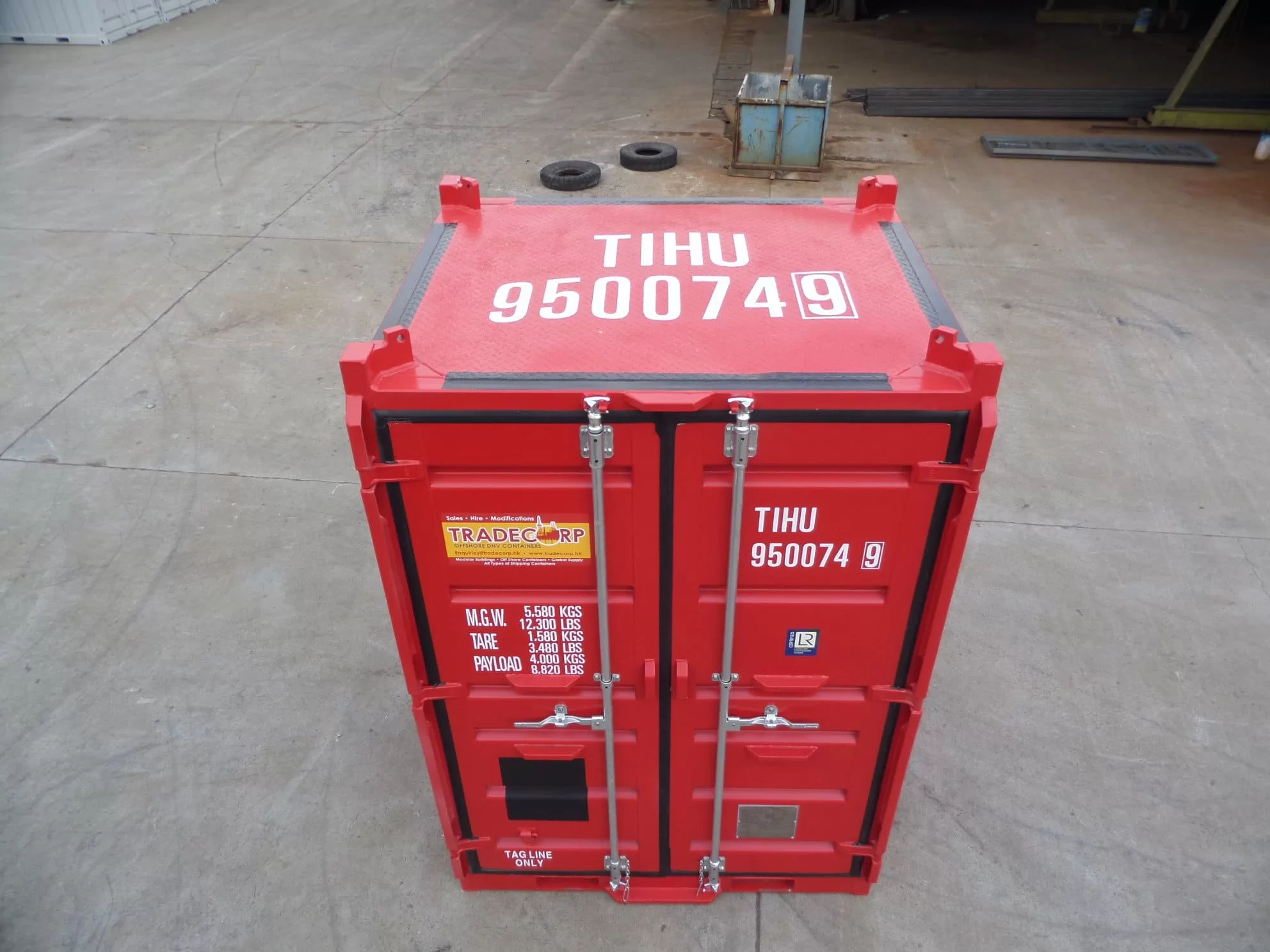

1. 9.5’ Mini Offshore DNV Container
| Length x Width x Height | 1.75 x 1.91 x 2.87 meters |
| M.G.W | 5,580 kg |
| Tare | 1,580 kg |
| Payload | 4,000 kg |
| Usage | Storage of tools, spare parts, and smaller industrial equipment |

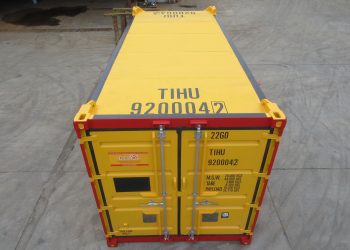

2. 20’ General Purpose Offshore DNV Container
| Length x Width x Height | 6.058 x 2.438 x 2.591 meters |
| M.G.W | 20,000 kg |
| Tare | 3,800 kg |
| Payload | 16,200 kg |
| Usage | Facilities for transporting and storing dry cargo such as equipment, spare parts, machinery, and more. Can be stored on deck and is stackable. |

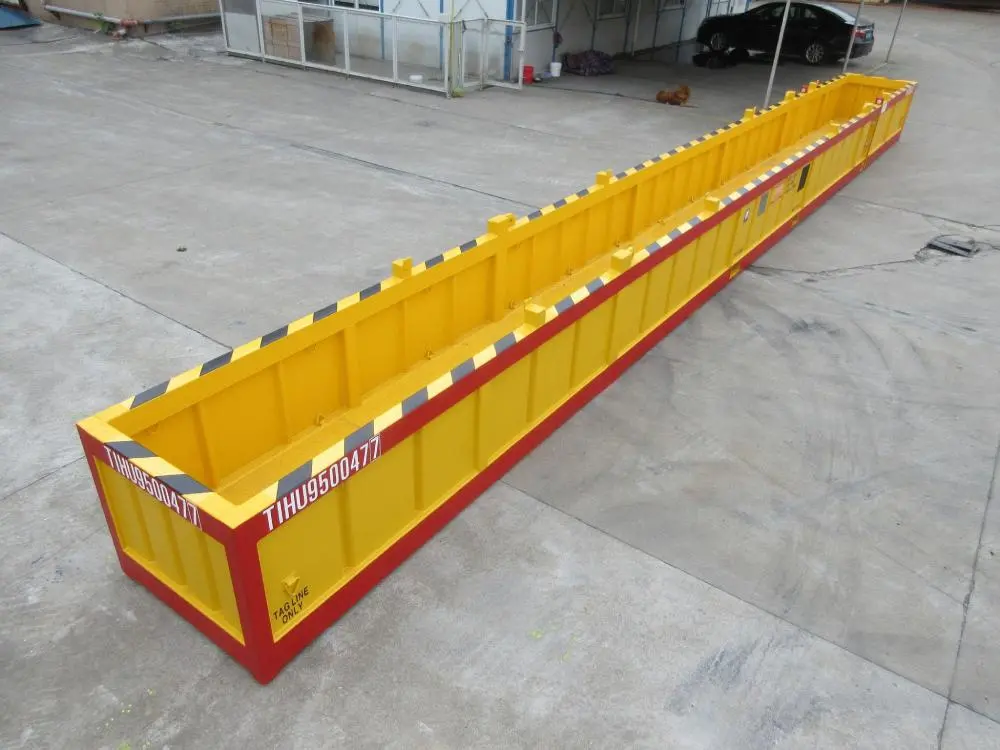

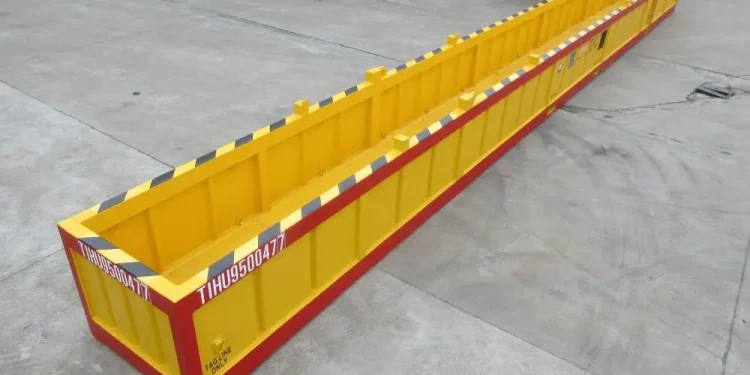

3. 14.3 Basket Offshore DNV Container
| Length x Width x Height | 14.300 x 1.200 x 1.150 meters |
| M.G.W | 15,450 kg |
| Tare | 3,450 kg |
| Payload | 12,000 kg |
| Usage | Transportation and storage of long drilling rods, casing pipes, scaffolding, hoses, rods, or subsea connection joints that do not fit into standard closed containers. |

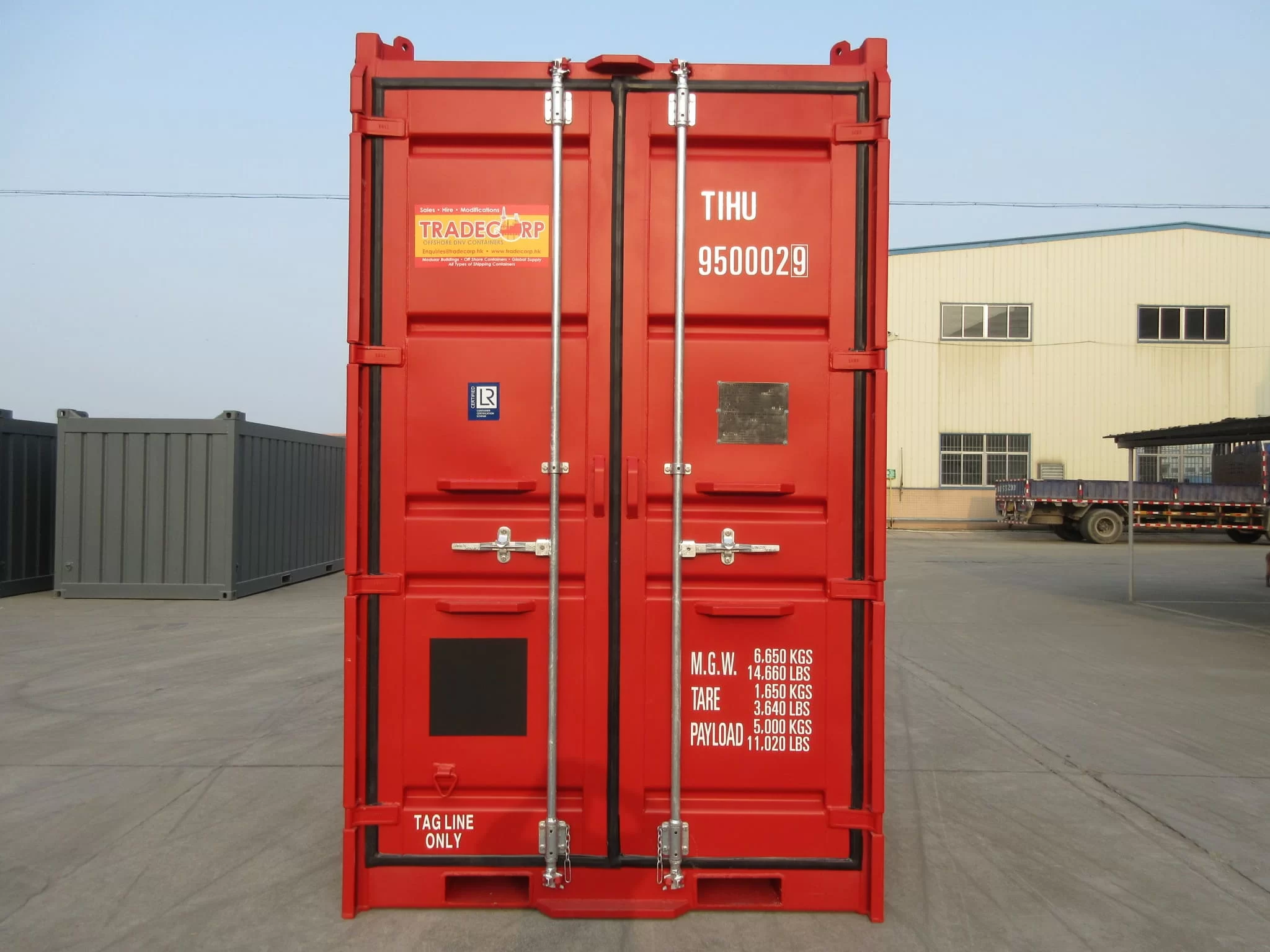

4. 10.5’ Mini Offshore DNV Container
| Length x Width x Height | 1.75 x 1.91 x 3.18 meters |
| M.G.W | 6,650 kg |
| Tare | 1,650 kg |
| Payload | 5,000 kg |
| Usage | Ideal for safely transferring maintenance tools, spare parts, or supplies between vessels and offshore platforms, especially when full-size containers are not practical. Suitable for use as a mini laboratory, workshop, or equipment storage cabinet. |

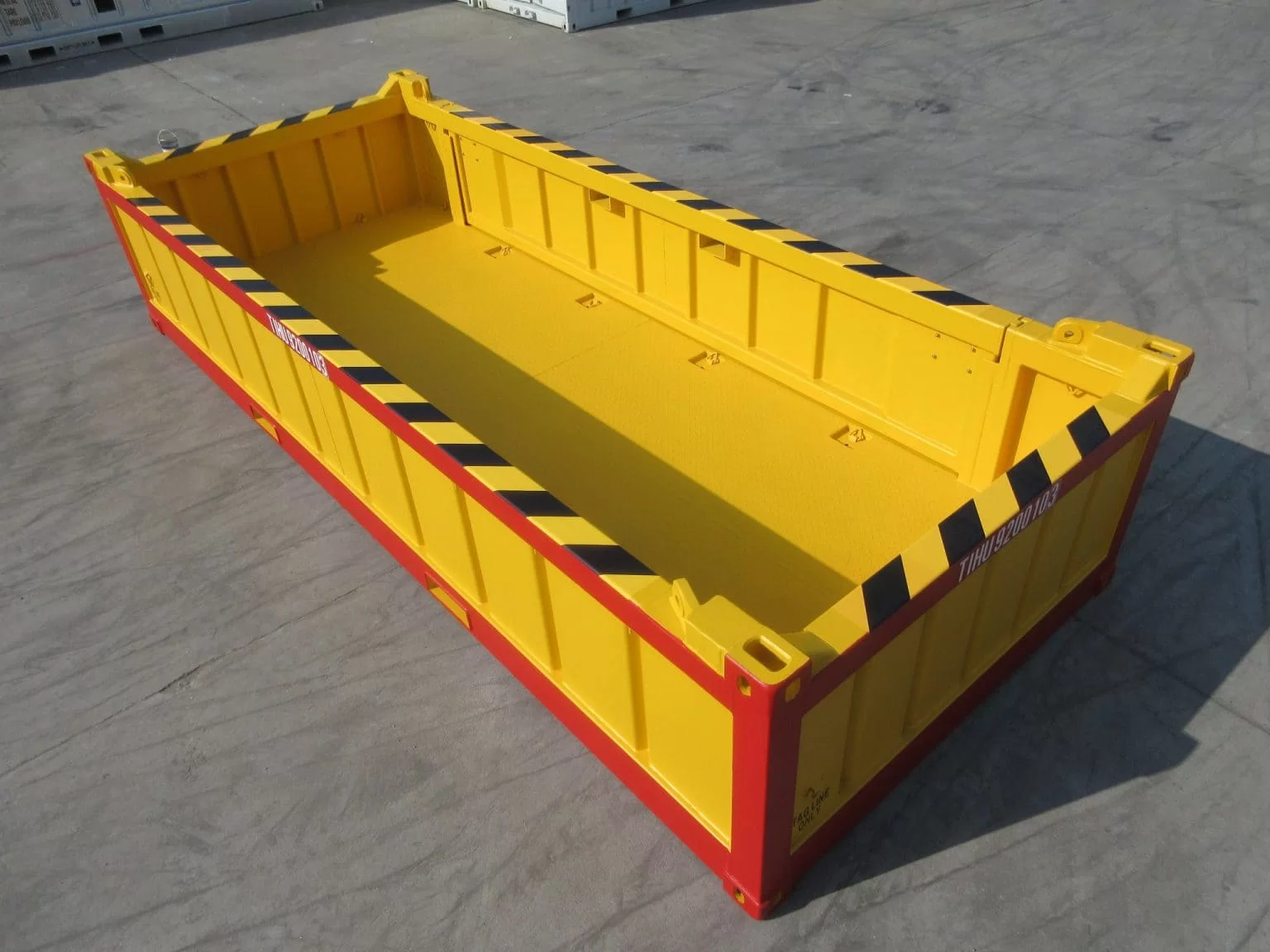

5. 20’ Half Height Offshore DNV Container
| Length x Width x Height | 6.058 x 2.438 x 1.280 meters |
| M.G.W | 19,380 kg |
| Tare | 3,380 kg |
| Payload | 16,000 kg |
| Usage | Ideal for transporting heavy and dense items such as pipe sections, anchors, chains, tools, and more to offshore locations. Also suitable for carrying oversized or irregularly shaped cargo that cannot be accommodated in standard containers. |

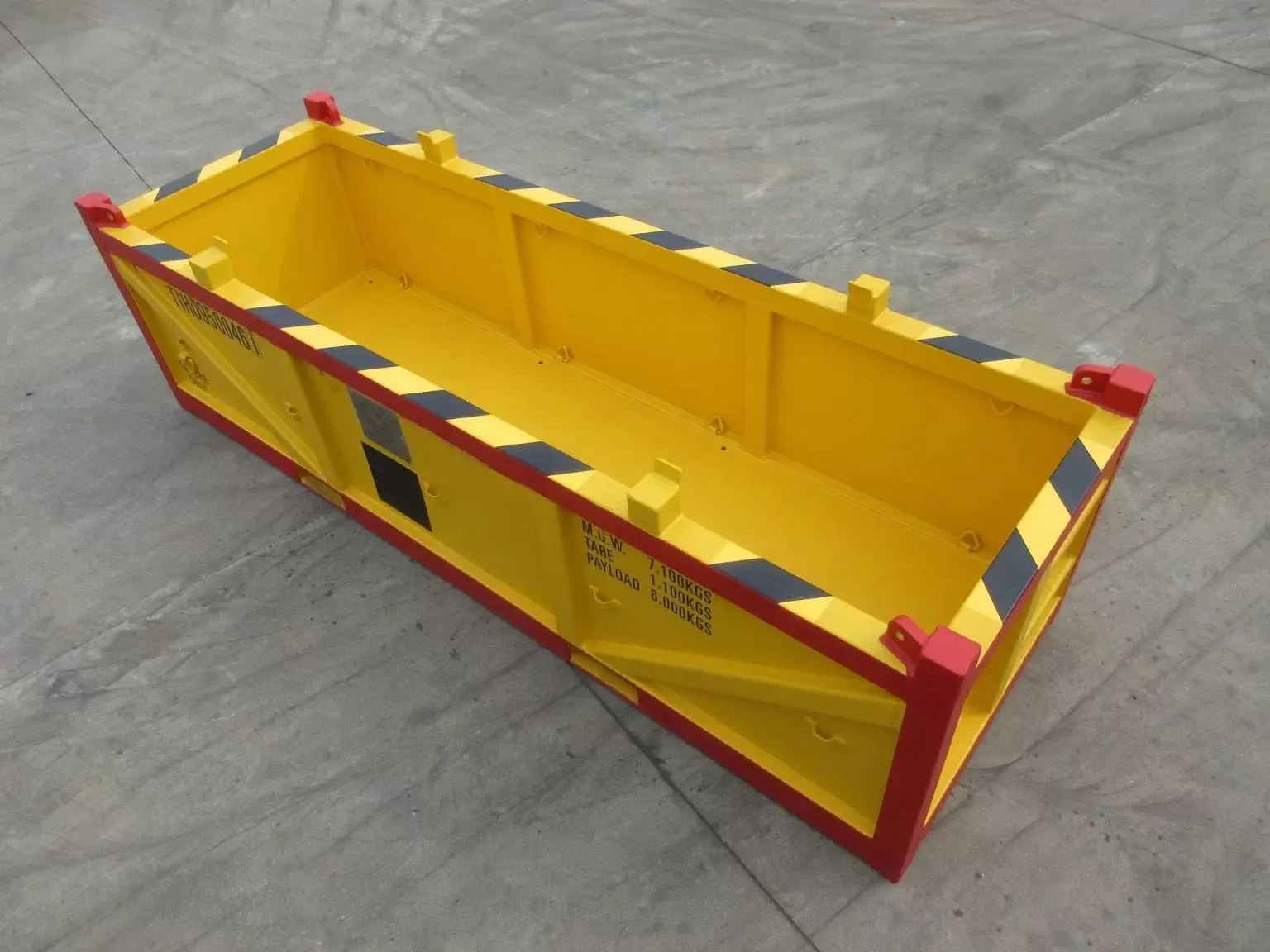

6. 12’ Basket Offshore DNV Container
| Length x Width x Height | 3.658 x 1.200 x 1.100 meters |
| M.G.W | 7,100 kg |
| Tare | 1,100 kg |
| Payload | 6,000 kg |
| Usage | Specifically designed for transporting drill pipes, scaffolding poles, large subsea components, or other long equipment that cannot fit into closed containers. |

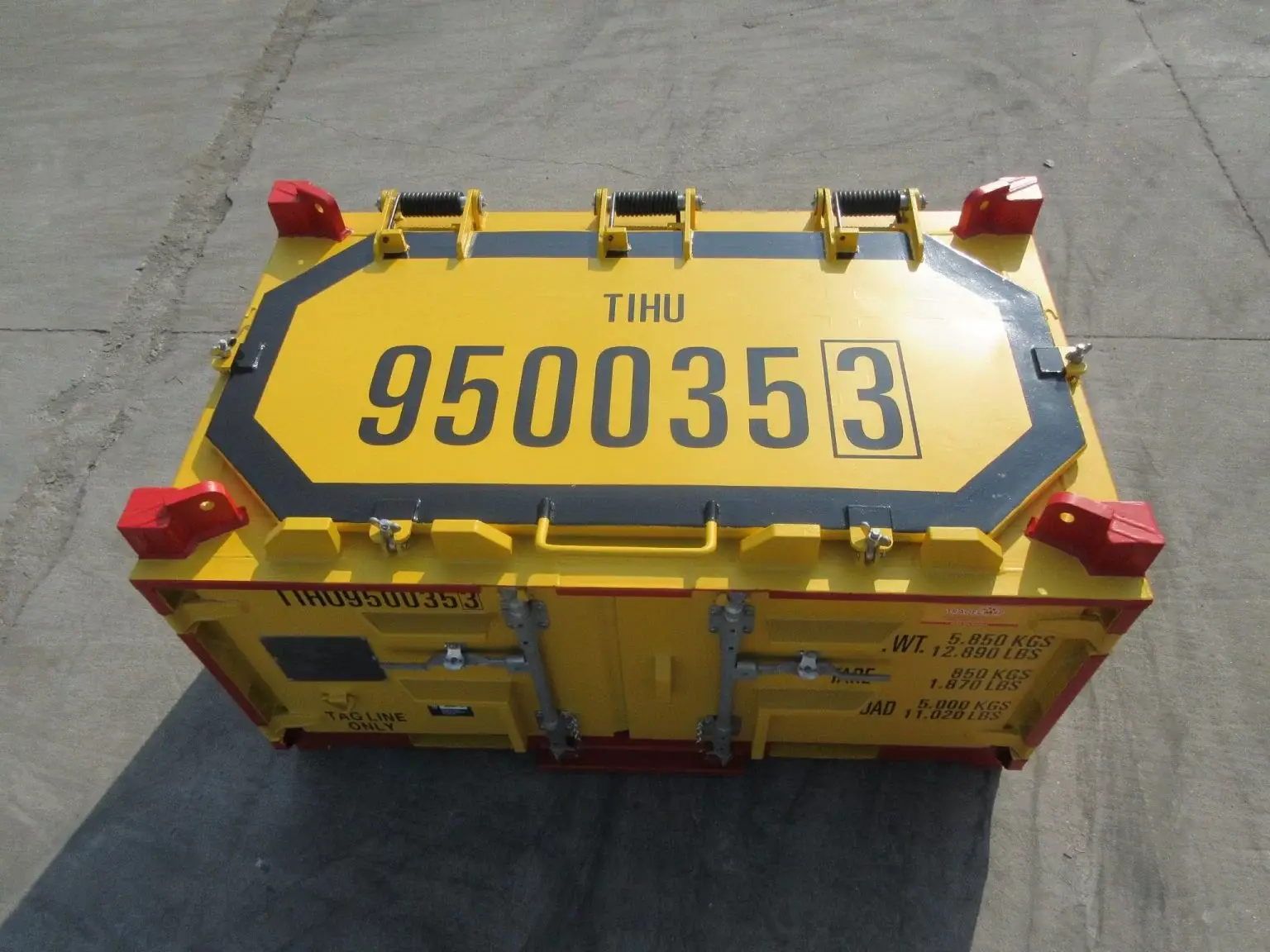

7. 2M Tool Box Offshore DNV Container
| Length x Width x Height | 2.000 x 1.196 x 1.138 meters |
| M.G.W | 5,850 kg |
| Tare | 850 kg |
| Payload | 5,000 kg |
| Usage | Specifically designed to store tools, spare parts, and specialized equipment offshore, keeping them organized, secure, and clean. |

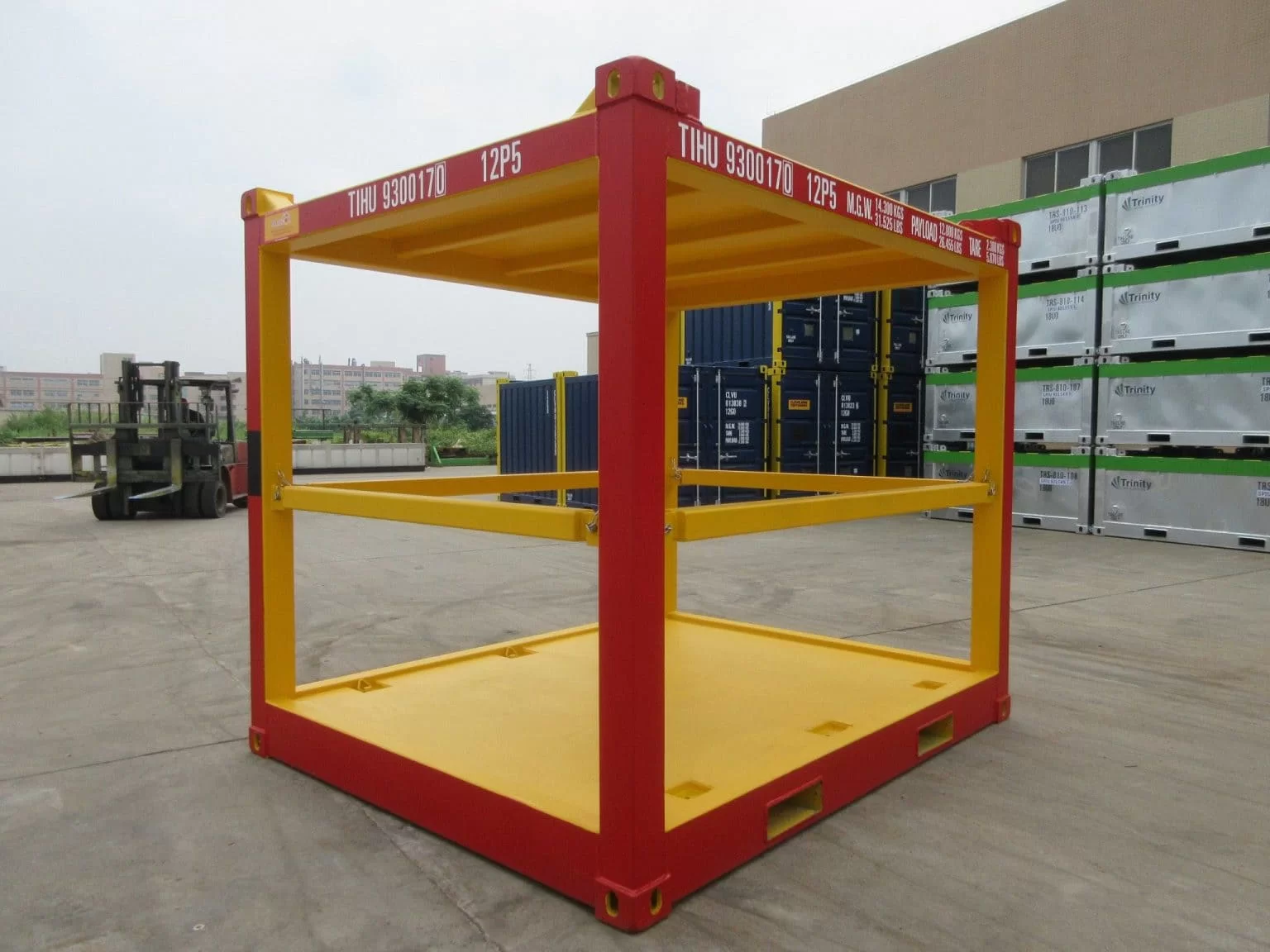

8. 10’ Lifting Frame Offshore DNV Container
| Length x Width x Height | 2.991 x 2.438 x 2.591 meters |
| M.G.W | 14,300 kg |
| Tare | 2,300 kg |
| Payload | 12,000 kg |
| Usage | Ideal for large machinery, metal components, long structural items, or construction materials that require secure lifting rather than enclosed protection. |

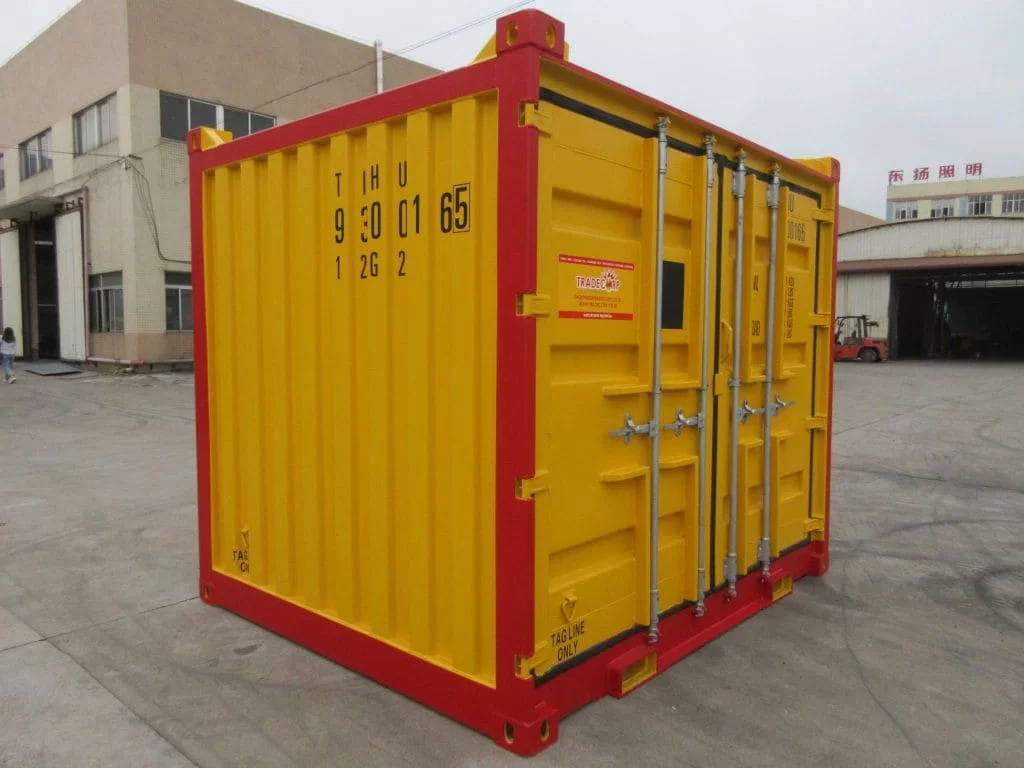

9. 10’ Offshore DNV Container
| Length x Width x Height | 2.991 x 2.438 x 2.591 meters |
| M.G.W | 10,000 kg |
| Tare | 2,400 kg |
| Payload | 7,600 kg |
| Usage | Ideal for storing tools, spare parts, batteries, chemicals, or consumables on platforms, supply vessels, or FPSO decks where space is limited. |
10. 8’ Drum Basket Offshore DNV Container
| Length x Width x Height | 2.008 x 2.440 x 1.521 meters |
| M.G.W | 6,200 kg |
| Tare | 1,200 kg |
| Payload | 5,000 kg |
| Usage | Ideal for handling oil drums, chemical drums, liquid containers, or other cylindrical cargo that requires secure and upright placement. |

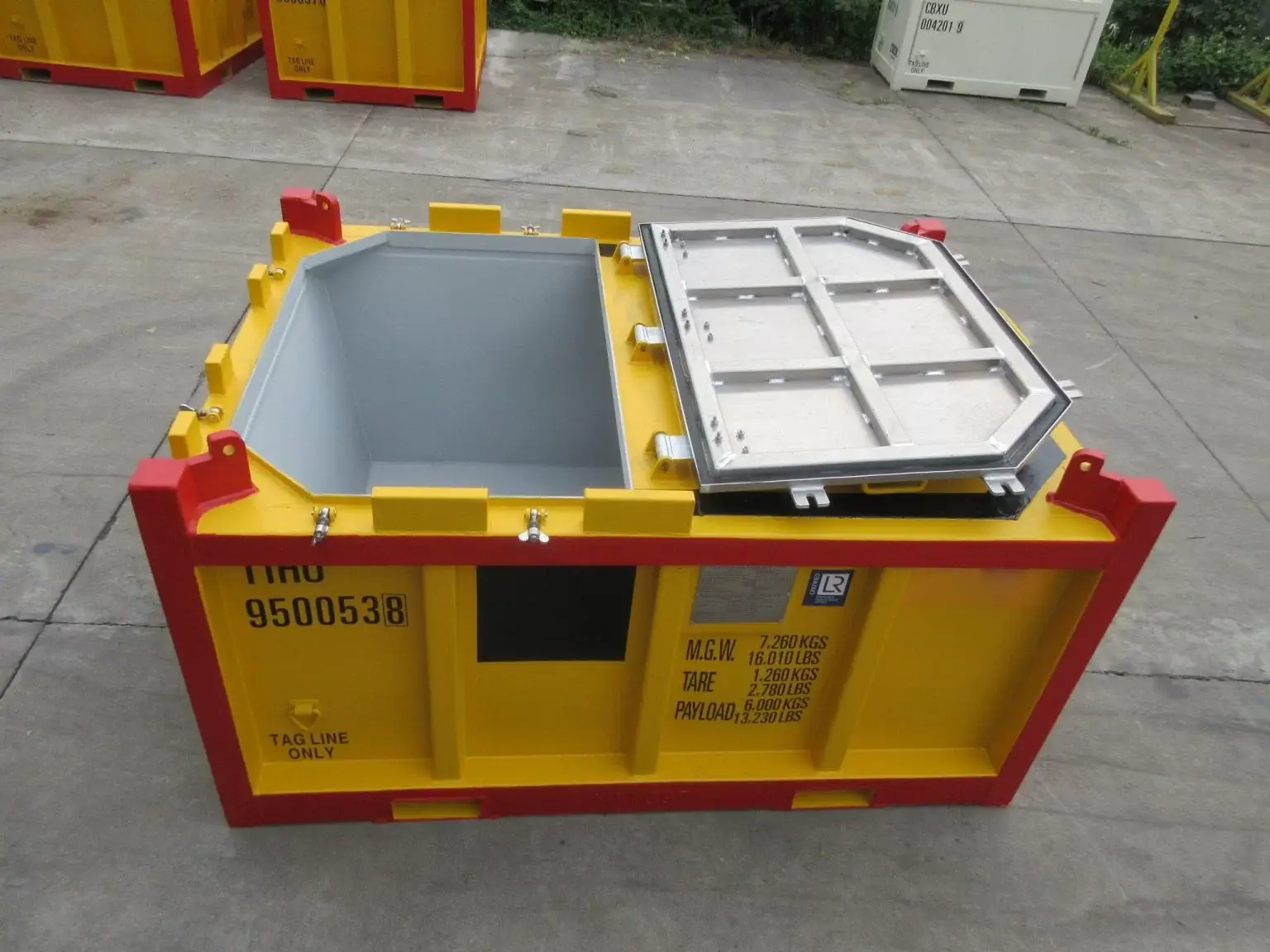

11. 7’10 X 5’7 X 4’2 Cutting Skip Offshore DNV Container
| Length x Width x Height | 2.390 x 1.700 x 1.270 meter |
| M.G.W | 7,260 kg |
| Tare | 1,260 kg |
| Payload | 6,000 kg |
| Usage | Efficiently collects and transports drill cuttings or other waste materials from offshore platforms to onshore disposal facilities. |

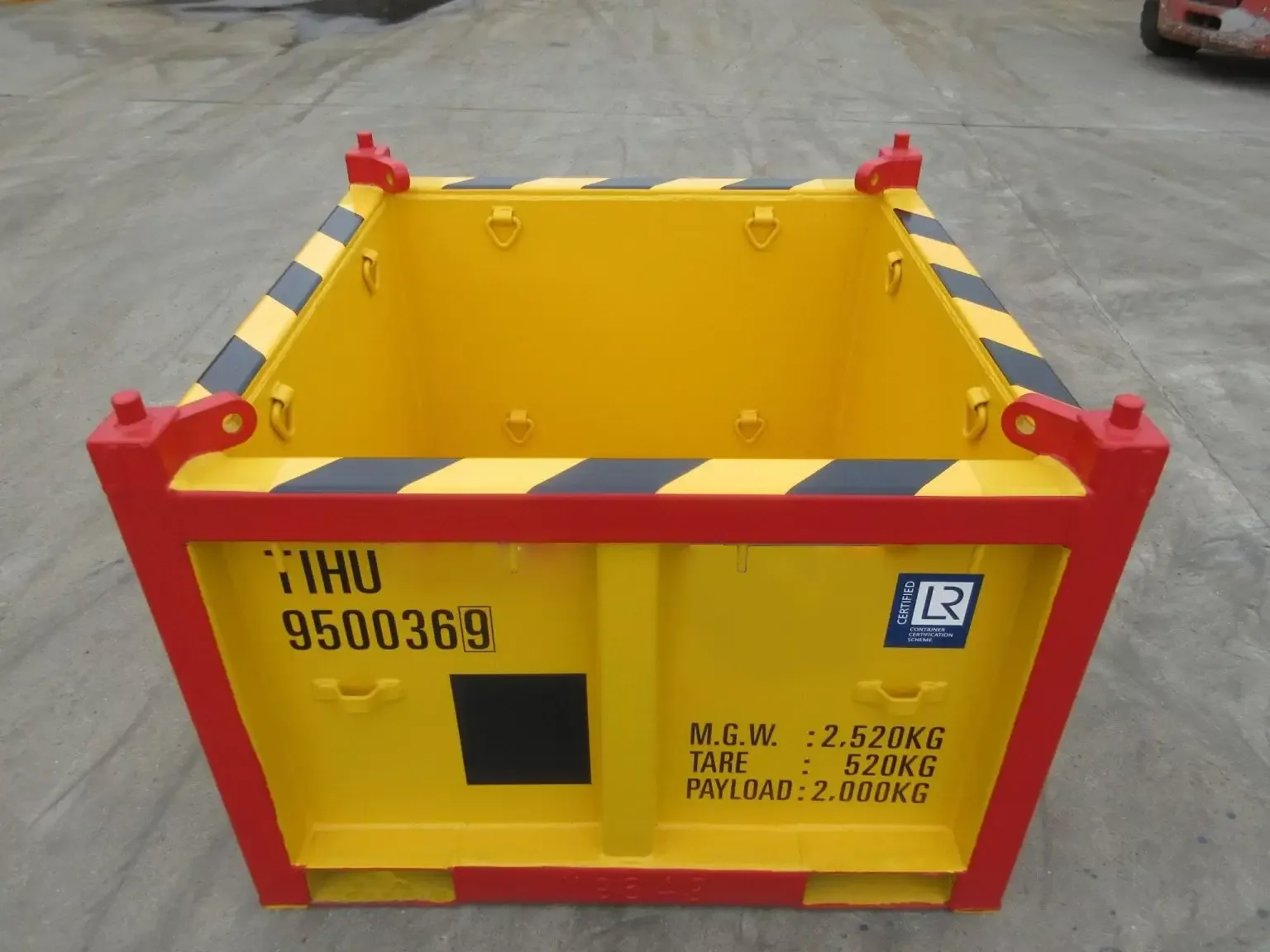

12. 4’X4’X3’ Basket Offshore DNV Container
| Length x Width x Height | 1.22 x 1.22 x 0.91 meters |
|---|---|
| M.G.W | 2,520 kg |
| Tare | 520 kg |
| Payload | 2,000 kg |
| Usage | Ideal for transporting or storing small offshore equipment and supplies such as tools, spare parts, hoses, subsea connectors, and other supporting gear. |

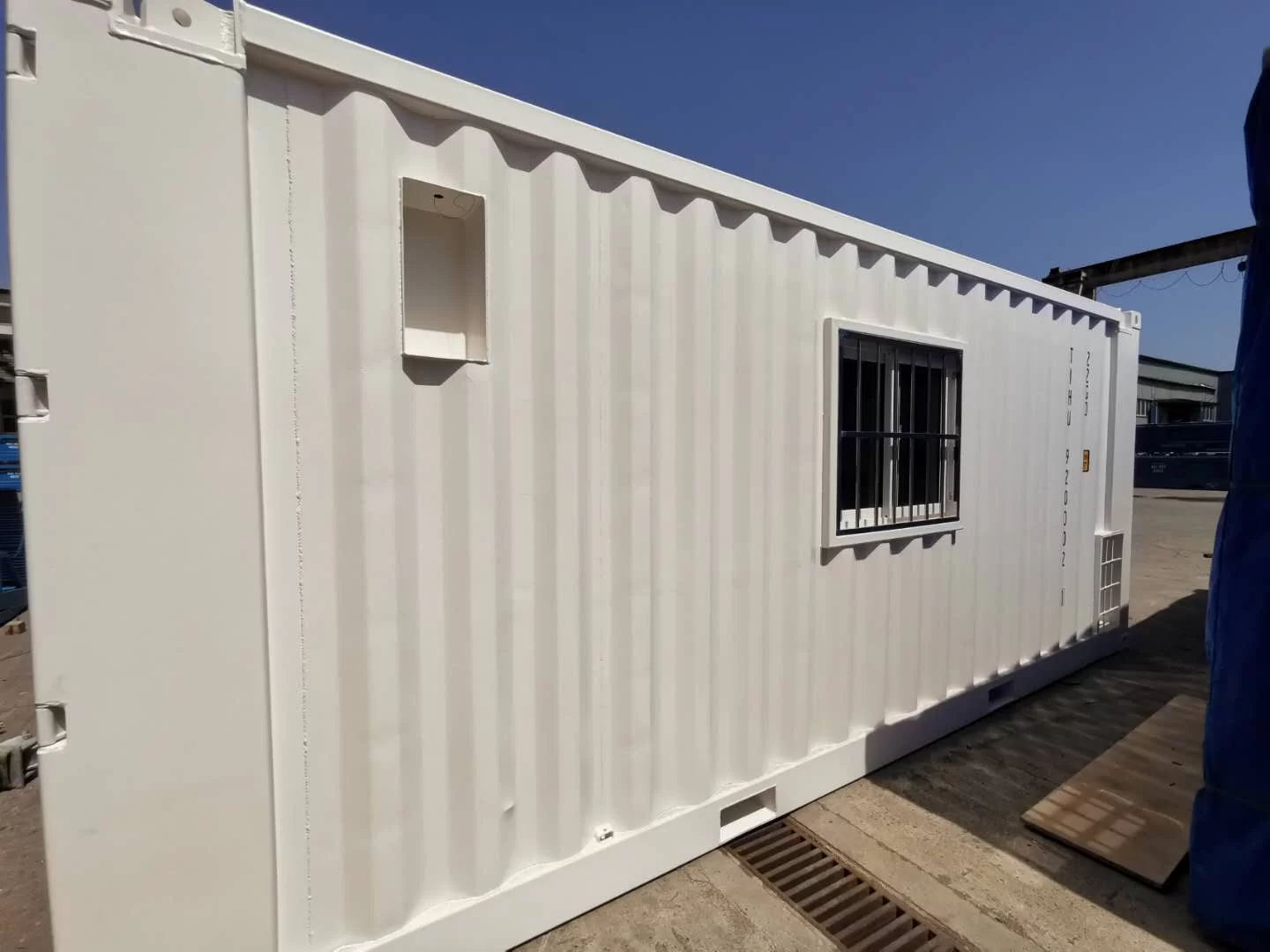

13. 20’ Test Cabin Offshore DNV Container
| Length x Width x Height | 6.058 x 2.438 x 2.591 meter |
| Feature | Personnel entry door, sliding window with protective bars, AC unit cage, Forklift pockets, protective bars, corner casting, pad eyes |
| Usage | Dirancang sebagai kabin aman untuk melakukan pengujian, pemasangan instrumen, atau tugas penelitian di lepas pantai, terutama di lingkungan yang mungkin mengandung bahan mudah terbakar atau atmosfer yang mudah menguap. |

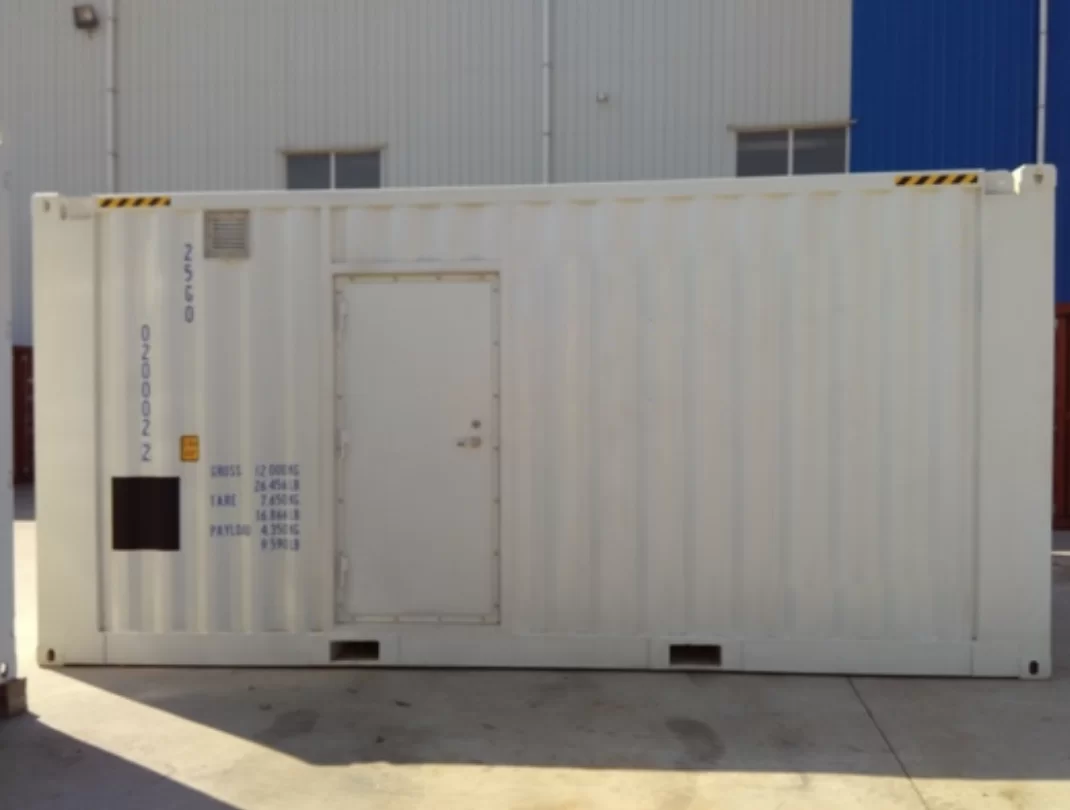

14. 20’ DNV Accommodation
| Length x Width x Height | 6.058 x 2.438 x 2.591 meter |
| Feature | Shower room, bedroom with bunkbed, air conditioning, forklift pockets, pad eyes |
| Usage | Ideal for accommodating up to two crew members during offshore projects, complete with private sleeping areas and climate-controlled sanitation facilities. |
Why DNV and ISO Certifications Matter for CCU Containers
DNV and ISO 10855 certification is not just a formality, but an essential requirement to ensure that CCU containers remain safe and fit for purpose. There are several reasons why these standards are so important.
1. Safety Assurance
DNV and ISO standards guarantee that every CCU container can withstand extreme conditions at sea. The container structure is designed to withstand heavy impacts during loading and unloading, minimizing the risk of accidents, worker injuries and cargo damage.
2. Optimal performance
CCU containers manufactured to ISO 10855 standards are proven to deliver optimal performance. This makes them a valuable asset for the offshore oil, gas and power industries that require durable units.
3. Regulatory Compliance
Meeting international standards helps companies avoid potential legal issues related to cargo loss or workplace incidents. Certification ensures compliance with globally accepted regulations.
4. Commitment to safety
Using ISO and DNV certified CCU containers demonstrates a company’s commitment to safety. This not only enhances credibility, but also builds trust with customers and business partners.
Check CCU Container Prices at Tradecorp
For those seeking ISO and DNV certified CCU containers, Tradecorp offers a wide range of units at competitive prices. Each CCU container is designed to support offshore operations and can be customized to meet the specific requirements of your project.
Details of container types, dimensions and technical specifications can be found on the Tradecorp website at https://kontainerindonesia.co.id/. Once you have identified the right option, simply complete the online enquiry form. Our team will promptly contact you to provide more details on unit features, customization options, and the best pricing for your needs.
