20' Side Opening Container

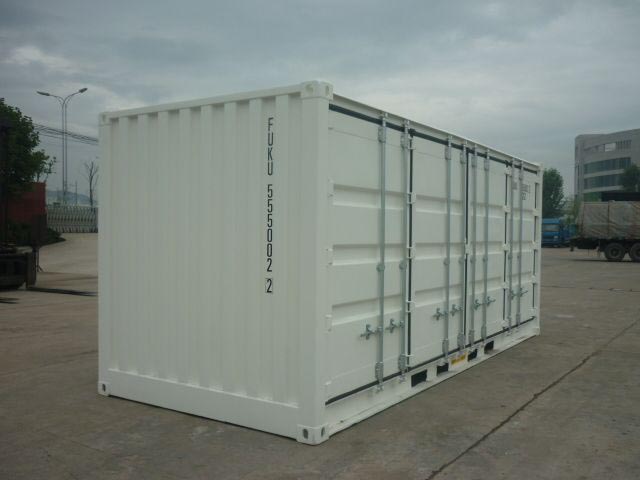

The 20′ Side Opening Container from Tradecorp Indonesia features additional doors along one of its long sides, alongside the standard rear doors. This side access makes it easier to load and unload large items or goods that are difficult to fit through the rear doors, such as pallets, furniture, equipment, and industrial supplies.

External Dimension (Length × Width × Height)

6,058 × 2,438 × 2,591 m

Cubic Capacity

31,0 m³

Maximum Gross Weight

30,480 kg

Maximum Payload

27.340 kg

Specifications

Features

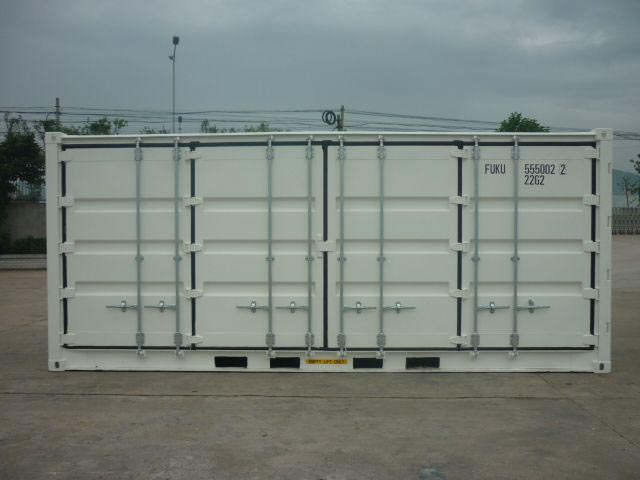

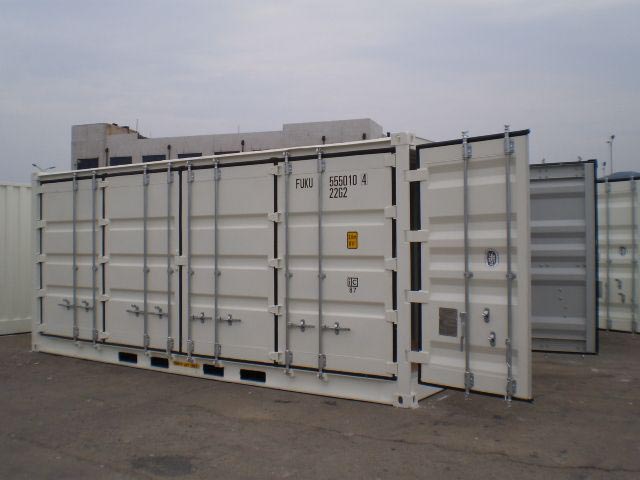

Side Opening Doors

Additional doors along one of the container's long sides that can be opened wide to provide direct access to the interior.

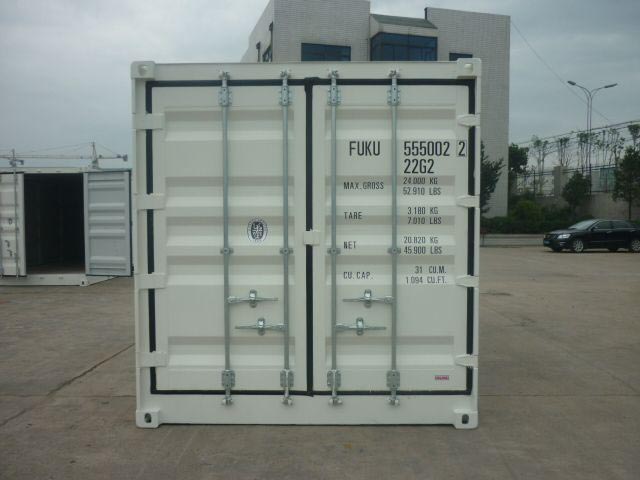

Rear Cargo Doors

Double doors at the rear of the container that provide additional access for loading and unloading goods from the end.

Plywood Floor

Plywood flooring that provides a sturdy surface for placing and supporting goods during storage and transportation.

Air Vents

Small ventilation openings in the container walls that allow limited air exchange.

Lashing rings

Securing points inside the container for attaching straps or chains to prevent goods from shifting during transportation.

Locking Bars

Locking bars on the side and rear doors, operated using handles to keep the doors securely closed.

Lockbox

A steel protective cover around the padlock area that helps restrict direct access to the lock and reduce the risk of tampering.

Corner Castings

Steel fittings at the top and bottom corners of the container that serve as connection points for lifting, securing with twistlocks, and stacking.

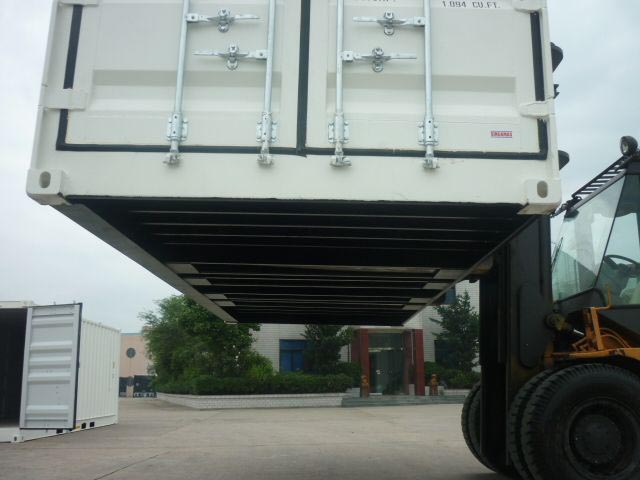

Forklift pockets

Openings along the bottom of the container that allow forklift forks to be inserted when lifting and moving empty units, subject to the equipment's rated capacity and applicable lifting requirements.

Applications

Palletized Cargo Loading

Making it easier to load and unload palletized goods using a forklift through the side doors.

Large Furniture and Equipment Storage

Storing furniture, machinery, industrial equipment, and other items that are difficult to load through standard container rear doors.

Additional Warehouse Space

Providing extra storage for inventory and operational supplies, with side access that makes it easier to retrieve goods without having to unload everything from the rear.

Exhibitions and Commercial Activities

Storing event supplies, exhibition equipment, and promotional materials. The unit can also be modified into a retail store or temporary sales space.

Frequently Asked Questions

Find complete information about container, construction, and modular building solutions for your various business and project needs.



A General Purpose Container has doors only at the rear, while a Side Opening Container has additional doors along one of its long sides. This provides wider access for loading and unloading goods, particularly pallets, furniture, and large equipment that may be difficult to move through the rear doors.

The side doors consist of multiple panels that can be folded back to provide access to the container’s interior. Make sure there is sufficient space along the container’s side so the doors can be opened without being obstructed by vehicles, buildings, or other objects. The opening configuration may vary depending on the unit.

Yes, the side doors make it easier to load and unload palletized goods using a forklift. However, sufficient access space and a suitable floor surface are required. A ramp or loading dock may also be needed to align the container floor with the forklift’s operating height. The forklift’s capacity and the container floor’s load limit must also be considered.

Yes, a Side Opening Container generally retains the double rear doors found on standard containers. This allows you to load and unload goods through either the side or rear doors, depending on your requirements.

As a general reference, a 20ft container can accommodate approximately 11 Euro pallets measuring 120 x 80 cm or 10 standard pallets measuring 120 x 100 cm in a single layer. The actual capacity depends on the internal dimensions, loading arrangement, and packaging sizes.

Yes, both the side and rear doors are equipped with locking mechanisms. The padlock area can also be fitted with a lockbox to help reduce the risk of tampering. Make sure all doors are properly closed and locked after loading the goods.

Yes, a Side Opening Container can be used for import and export, provided it meets the applicable CSC safety requirements. Confirm the CSC plate, inspection status, and acceptance of the container by the shipping line before arranging transportation.

Tradecorp offers new and used Side Opening Containers, subject to stock availability. Contact our team to check the condition, specifications, and available units.

Delivery can be arranged depending on the destination and transportation requirements. Make sure there is sufficient space along the container’s side to open the doors, adequate access for the transport truck, and enough room for unloading.
